Pile Toe Concrete Interface

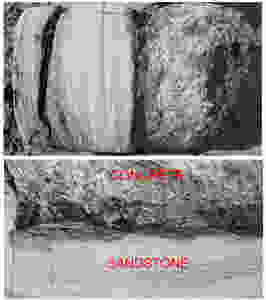

It's not everyday you get to see the pile toe to concrete interface at a scale larger than 76mm geotechnical core. This photo is of a 900mm diameter core of a pile toe on a recent project. Gives confidence the pile construction methodology was appropriate for the ground conditions at the site with liner seals intact and clean pile bases.

Interface of the concrete pile to foundation toe of a cast in place concrete pile.
Pile socket toe interface
